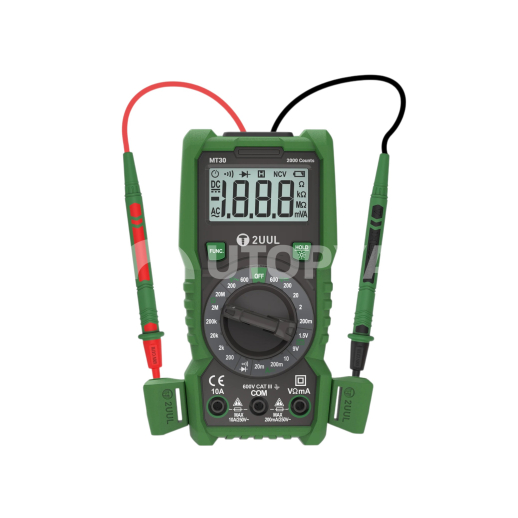

2UUL MT30 Auto-Reset Smart Digital Multimeter (2000 Counts)

Description

The 2UUL MT30 smart digital multimeter is an electronic measurement and diagnostic instrument specially developed for smartphone, tablet and laptop repair workshops. Designed to meet the needs for precise analysis on motherboard PCBs, this compact tool allows voltage, continuity and resistance checks to be performed on miniature charging lines or data lines. Its intelligent auto-range detection system and Auto-Reset function simplify laboratory test execution by instantly selecting the appropriate range without unnecessary manual handling.

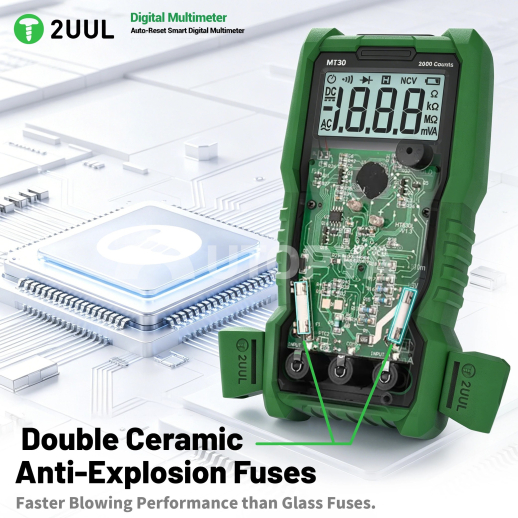

Technically and safety-wise, the 2UUL MT30 stands out through the integration of a high-specification dual ceramic fuse system with ultra-fast tripping. This anti-explosion architecture offers far superior protection against accidental overcurrents compared to conventional glass fuses. The device is equipped with a high-definition 2000 Counts LCD screen featuring high-performance backlighting, ensuring perfect readability of values in low-light environments. It also embeds non-contact voltage (NCV) detection technology to quickly locate electrical fields and live lines without direct galvanic contact.

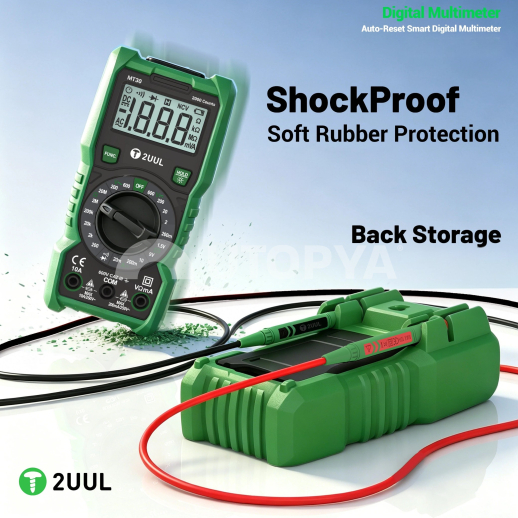

The ergonomics of the housing have been designed for workbench constraints: the rigid polymer chassis is entirely covered with a high-elasticity elastomer protective sheath capable of absorbing drop impacts and workshop friction. The rear structure and sides of the multimeter incorporate molded storage slots dedicated to the test probes, preventing cable twisting and ensuring a perfectly ordered workspace. The supplied probes feature ultra-fine measurement needles specifically designed to access ultra-dense SMT/SMD components and micro test points without risking adjacent short-circuits.

Technical Specifications

• Manufacturer Part Number: 2UUL MT30 (Auto-Reset Smart Multimeter)
• Technology / Material: Auto-Range microprocessor, ABS housing with anti-shock elastomer overmolding
• Compatibility: Universal (Micro-electronics, PCB repair, smartphone diagnostics)
• Dimensions: 165 x 110 x 52.5 mm (Packaging dimensions)
• Weight: 287 g (Net housing weight) / 343 g (Gross weight)
• Power Supply / Standards: 2x 1.5V AAA batteries / Safety compliance EN61010-2-030 & EN61010-2-033 CAT III 600V
• Display: 2000 Counts backlit LCD screen
• DC Voltage Range: 200mV / 2V / 20V / 200V / 600V (Accuracy ±0.5% + 3)
• AC Voltage Range: 200V / 600V (Accuracy ±1.0% + 3)
• DC Current Range: 20mA / 200mA / 10A (Accuracy ±1.2% to ±2.0% + 3)
• Resistance Range: 200Ω to 20MΩ (Accuracy ±1.0% + 3)
• Analysis Functions: Non-contact NCV detection, audible continuity test, diode test, Auto-Reset

Workshop Tip & Usage

For short-circuit diagnostics on a smartphone motherboard (e.g. VBUS, VBAT or VDD_MAIN lines), configure the 2UUL MT30 in continuity/diode test mode and use the fineness of the original probes to probe directly on the SMT decoupling capacitors without pressing excessively. Before any resistance or continuity measurement on a motherboard, make sure to strictly disconnect the battery and any external power source (Lightning/USB-C cable) to avoid skewing readings or straining the internal ceramic fuses. In case of prolonged non-use, remove the two AAA batteries to prevent sulfation of the power compartment contacts.
