2UUL PC12 110W 5-Port Desktop Charging and Diagnostic Station with Animated HD Digital Screen

Description

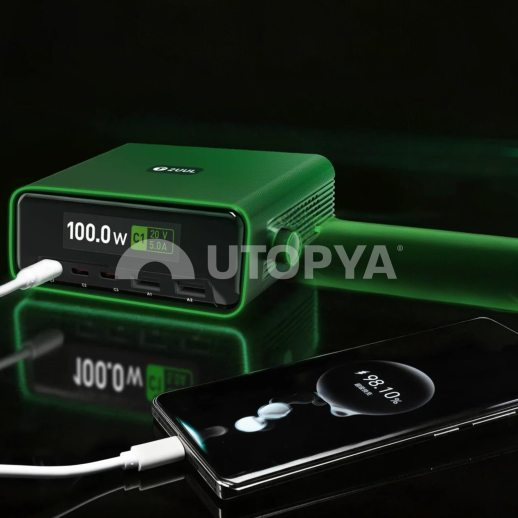

The 2UUL PC12 (110W) smart charging station is industrial-grade equipment designed specifically for smartphone, tablet, and laptop repair workshops. This centralised power module allows technicians to do away with multiple power bricks on the workbench while offering a high-performance B2B diagnostic interface. Its versatility makes it an essential asset for simultaneously powering client phones in the post-repair testing phase, USB diagnostic tools, and workshop laptops.

At the heart of the device is a large colour high-definition (HD) screen coupled with an AI-managed power management processor. Unlike conventional desktop chargers, the PC12 model instantly and accurately displays the electrical profile (current in amps and voltage in volts) of the connected device in the form of dynamic graphic animations. This feature allows for an immediate visual diagnosis to check if a charging integrated circuit (U2/Tristar on iPhone, PMIC on Android) is absorbing energy correctly or shows a consumption anomaly. The chassis is made of high-density flame-retardant PC and ABS polymers, incorporates passive heat dissipation slots to limit temperature rise during heavy charging sessions, and features an interactive rotary control button for custom management.

The internal architecture is based on an asymmetrical and intelligent distribution of the total 110W power. 2UUL's ergonomic engineering has positioned the main high-performance USB-C port on the front (delivering up to 100W on its own via the Power Delivery protocol) to facilitate quick and frequent connections. The secondary ports (USB-C and USB-A) are judiciously moved to the rear face to keep the workshop's fixed and permanent cables perfectly tidy, thus maximising the space available on the silicone repair mat.

Technical Specifications

• Manufacturer reference: 2UUL PC12
• Technology / Material: Flame-retardant Polycarbonate (PC) and ABS chassis, AI dynamic charging algorithm with colour HD monitoring screen
• Compatibility: Universal (Apple iPhone/MacBook/iPad, Samsung, Xiaomi, Huawei, portable consoles, and workshop boot ribbons)
• Dimensions: 112 mm × 90 mm × 42 mm
• Weight: 351 g (Net) / 412 g (Gross)
• Power supply / Standards: AC input 100-240V (50/60 Hz) / CE and RoHS certifications
• Output configuration: 5 ports in total (1x USB-C on the front, additional USB-C and USB-A ports on the back)
• Maximum electrical profiles: USB-C1 (Front): 100W Max | USB-C2/C3/C4: 45W Max per port | USB-A1: 30W Max
• Supported protocols: USB Power Delivery 3.0 / 2.0, PPS, Qualcomm Quick Charge 3.0 / 2.0, Huawei FCP/SCP, Samsung AFC, Apple 2.4A, DCP

Workshop Advice & Usage

For optimal use in micro-soldering, connect your Power Boot Cables directly to the front USB-C1 port or use a dedicated adapter on the rear ports. When diagnosing a smartphone that refuses to turn on, observe the PC12 screen: consumption blocked at 0.1A or oscillating irregularly generally indicates a motherboard problem or a damaged charging connector. Be sure to use 5A (E-Marker) certified USB-C cables to exploit the full 100W power on the main port, as standard cables are electronically limited to 3A (60W maximum).
