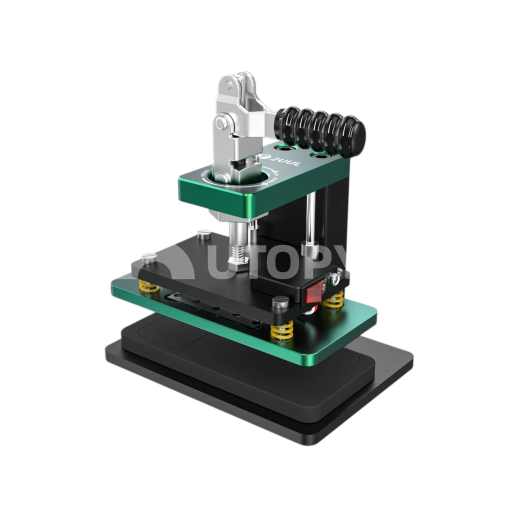

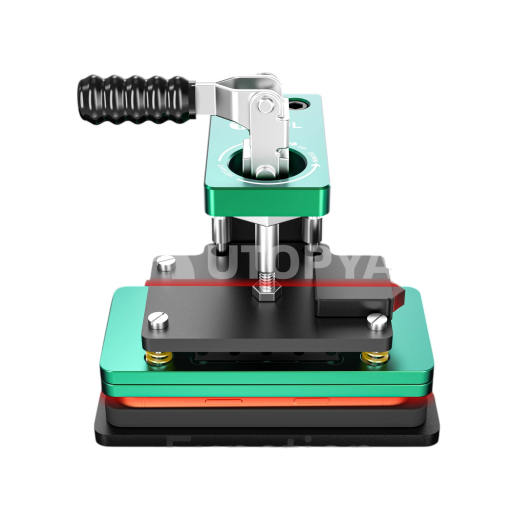

2UUL Pressy DA07 Mini Thermal Pressing Station 24V / 2A

Description

The 2UUL DA07 (Pressy) mini thermal pressing station is a professional-grade precision tool designed to finalise delicate bonding operations on smartphones and tablets. It addresses a major issue in B2B repair workshops: ensuring uniform pressure and constant heat when replacing rear camera lenses, positioning FPC flex cables or regluing frames and display components. Its use eliminates the inaccuracy of manual clamping clips and prevents the risk of cracking glass or OLED matrices.

Its structure is machined from a high-density steel alloy, offering a net weight of 300 g. This weight is specifically calibrated to exert sufficient compression force to drive out micro air bubbles from adhesives and ensure perfect contact, without ever reaching the breaking point of the thinnest display panels. The tool base is equipped with a soft thermal silicone sole that protects surfaces against scratches while ensuring uniform thermal diffusion over the entire targeted area.

Electronically, the 2UUL DA07 features a stabilised heating resistor powered by a dedicated mains adapter delivering a voltage of 24V at a current of 2A. The device quickly reaches its stabilised working temperature around 40°C to 45°C. This moderate heating is crucial: it slightly liquefies OCA-type glues, cold glue or B-7000 liquid adhesives to optimise molecular bonding, while remaining well below the degradation temperatures of display polymers.

Technical specifications

• Manufacturer part number: 2UUL DA07 (Pressy Mini Heating Press Station)
• Technology / Material: High-density stainless steel body and thermally conductive silicone sole
• Compatibility: Universal (Camera lenses, FPC flex cables, frames and display components)
• Dimensions: 55 x 40 x 40 mm
• Weight: 300 g (Calibrated ballast)
• Power supply / Standards: 24V / 2A mains power adapter included (DC Jack socket), CE Certification
• Heating temperature: Approx. 40°C - 45°C constant

Workshop Advice & Usage

For optimal results, let the station preheat for 2 minutes before application so that the silicone sole reaches its peak temperature. When replacing a camera lens, position the station directly on the freshly glued component and leave for 3 to 5 minutes. Please note that the 2UUL DA07 is powered exclusively by its supplied 24V / 2A mains adapter and does not have a USB-C port. The device incorporates a voltage management chip: in the event of electrical network instability or fluctuation (high or low voltage), the automatic protection triggers and cuts off the station. If this blockage occurs on your network, temporarily connect the station to a 3A power supply to reset the safety chip, the product will then resume normal operation with its original unit.
