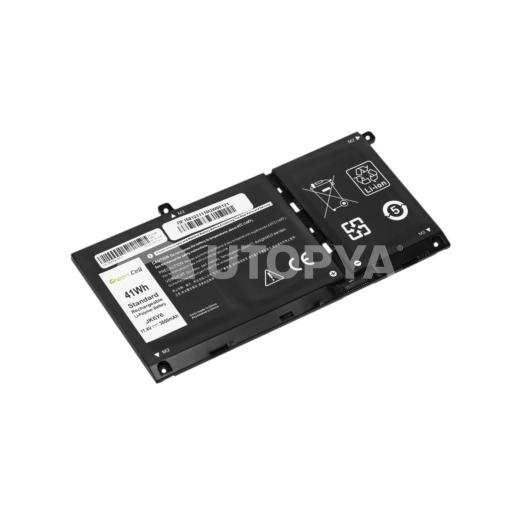

Dell Latitude / Inspiron Green Cell 3600mAh Battery (Li-Po 11.4V) - Ref. 1VX1H / YRDD6 (Refurbished)

Description

The Green Cell internal replacement battery of 3600 mAh (references 1VX1H / YRDD6 / 01VX1H) is a refurbished spare part specially selected for the maintenance, renovation and refurbishment of a wide fleet of Dell laptops in the Latitude (3410, 3510), Inspiron 13 (5300, 5301), Inspiron 14 (5401, 5402, 5409) and Inspiron 15 (5501, 5502, 5505, 5508, 5509) series. Intended for computer repair workshops, corporate IT fleet management services and B2B resellers specialised in refurbished hardware, this battery under a 3-month warranty restores the original autonomy of Dell workstations at a perfectly controlled workshop equipment cost.

Electochemically, this refurbished module incorporates an assembly of 3 high-density Lithium-ion Polymer (Li-Po) cells of the Green Cell brand, delivering a capacity of 3600 mAh at a nominal voltage of 11.4V for an accumulated energy of 40 Wh to 42 Wh. This configuration provides a perfectly regulated electrical power supply to the motherboard and supports up to 500 complete charge and discharge cycles. The whole unit is controlled by an intelligent electronic management circuit (BMS - Battery Management System) responsible for the continuous control of the charging current. This controller protects the component and the computer against overvoltages, deep discharges, short circuits as well as the risks of thermal runaway during intensive use.

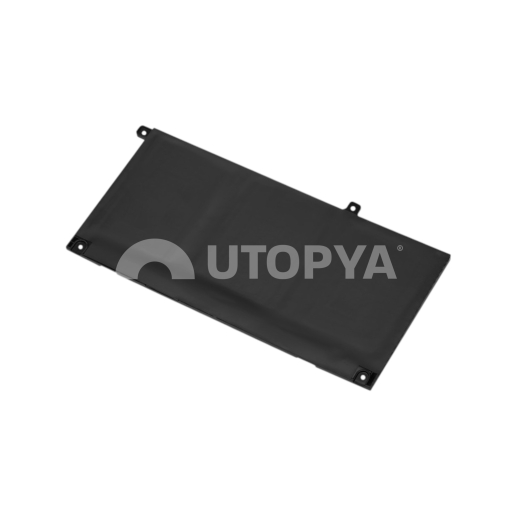

The ultra-flat external casing is moulded in a heat-resistant high-density insulating polymer, rigorously adapted to the internal footprint of the Dell Latitude and Inspiron chassis. Integration is carried out directly under the bottom shell of the laptop and interfaces with the motherboard by means of a secure flat ribbon connector. The location of the metal fixing eyelets faithfully respects the original assembly points to guarantee a rigid attachment without exerting mechanical stress under the palm rest or the keyboard.

Technical specifications

• Manufacturer reference: 1VX1H / YRDD6 (Green Cell equivalents DE141 / 01VX1H, 0YRDD6, VM518, 0VM518, VX518)
• Technology / Material: Lithium-ion Polymer (Li-Po) accumulators, rigid insulating polymer casing
• Compatibility: Dell Latitude 3410, 3510, Dell Inspiron 13 (5300, 5301), Inspiron 14 (5401, 5402, 5409), Inspiron 15 (5501, 5502, 5505, 5508, 5509), Dell Vostro 14 (5401, 5402), Vostro 15 (5501, 5502)
• Dimensions: 178 x 97 x 6 mm
• Weight: 190 g
• Power supply / Standards: Nominal voltage 11.4V / Capacity 3600 mAh (40 Wh / 42 Wh) / CE, RoHS certifications
• Number of cells: 3 Li-Po cells
• Condition / Warranty: Refurbished (Refurb) / 3-month B2B warranty
• Integrated protections: BMS board with anti-overload, anti-overheating, short-circuit and deep-discharge safety

Workshop Advice & Usage

Before installing this battery on Inspiron 15 or Latitude 3510 chassis, check for the presence of a secondary 2.5-inch SATA hard drive: the 1VX1H / YRDD6 reference (3 cells / 40Wh) is the essential compact model to leave free space for the 2.5 inch receptacle. On models equipped only with an M.2 SSD, Dell sometimes mounts the long-life 4-cell version (H5CKD). For the intervention, turn off the device, unplug the mains charger and remove the bottom shell. Disconnect the interconnection cable of the used battery using a plastic spatula (spudger) without pulling on the wires so as not to damage the motherboard socket. During initial workshop commissioning, the Workshop advises performing a full calibration cycle: charge the refurbished battery to 100% under mains voltage, then let the device discharge gradually to around 10-15% before carrying out an uninterrupted recharge.
