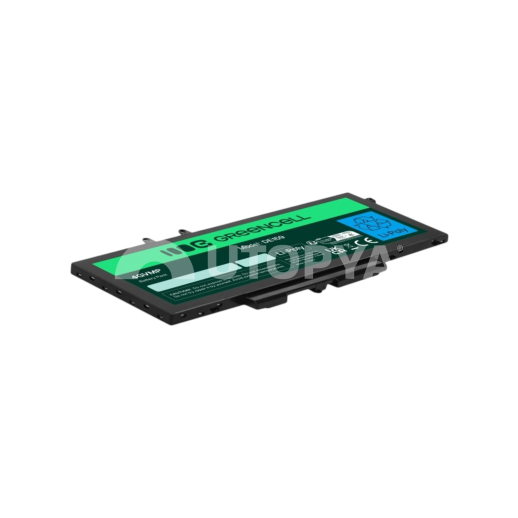

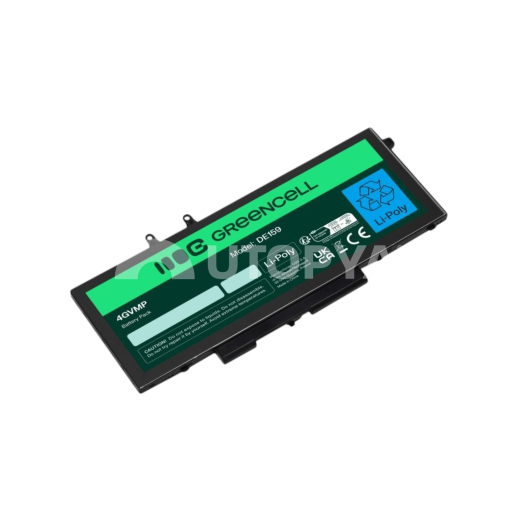

Dell Latitude / Precision Green Cell 8000mAh Battery (Li-Ion 7.6V) - 4GVMP (Refurbished)

Description

The Green Cell 8000 mAh internal replacement battery (reference 4GVMP) is a quality refurbished spare part, specially selected for the renovation and maintenance of the Dell Latitude professional laptop fleet (5400, 5410, 5500, 5510) and Dell Precision (3540, 3550). Intended for computer repair workshops, PC refurbishment services, and B2B resellers, this refurbished battery benefiting from a 3-month warranty restores the nominal battery life of mobile workstations without imposing the costs of a brand-new factory-fresh component.

Electrochemicaly, this module relies on a 4-cell high-density Lithium-ion Polymer chemistry, delivering a capacity of 8000 mAh at a nominal voltage of 7.6V (accumulated power of 68 Wh). This architecture supports up to 500 full charge and discharge cycles while maintaining excellent voltage stability on the processor power lines. The module integrates an advanced electronic management board (BMS - Battery Management System) responsible for active control of charging parameters. This circuit effectively protects the battery and motherboard against overvoltages, deep discharges, short circuits, as well as thermal runaways.

The ultra-flat rigid chassis is molded in a thermo-resistant polymer adjusted to the millimeter according to Dell frame specifications. Integration is carried out directly under the lower cover of the laptop by means of a specific ribbon connector locking onto the motherboard. The location of the screw eyelets respects the original anchor points to ensure a perfect mechanical fixation, free of any play under the palm rest.

Technical specifications

• Manufacturer reference: 4GVMP (Green Cell Equivalents DE141 / 1P6KD, 01P6KD, C5KG6, 0C5KG6, RF7WM, 9JRYT)
• Technology / Material: Lithium-ion Polymer accumulators (4 cells), insulating polymer rigid casing
• Compatibility: Dell Latitude 5400, Latitude 5410, Latitude 5500, Latitude 5510, Dell Precision 3540, Precision 3550
• Dimensions: 238 x 100 x 7 mm
• Weight: 320 g
• Power / Standards: Nominal voltage 7.6V / Capacity 8000 mAh (68 Wh) / CE, RoHS certifications
• Number of cells: 4 Li-Po cells
• Condition / Warranty: Refurbished / 3-month warranty
• Integrated protections: BMS board with anti-overcharge, anti-overheating, short-circuit, and deep discharge security

Workshop Tip & Usage

Before replacing the 4GVMP battery, turn off the computer, unplug the mains charger, and strictly disconnect the old battery before handling any other component. Pay attention to the storage configuration: the 68 Wh version (4 cells) occupies an extended space inside the chassis. On 15-inch models (Latitude 5500/5510 and Precision 3540/3550), this battery requires the use of an M.2 SSD storage and makes the simultaneous installation of a 2.5-inch SATA hard drive impossible. During first use, perform an initial calibration cycle: charge the component to 100%, then let the battery discharge gradually down to 10-15% before performing a full uninterrupted recharge.
