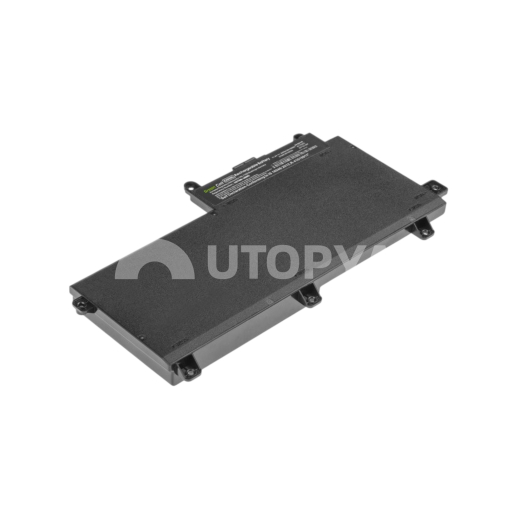

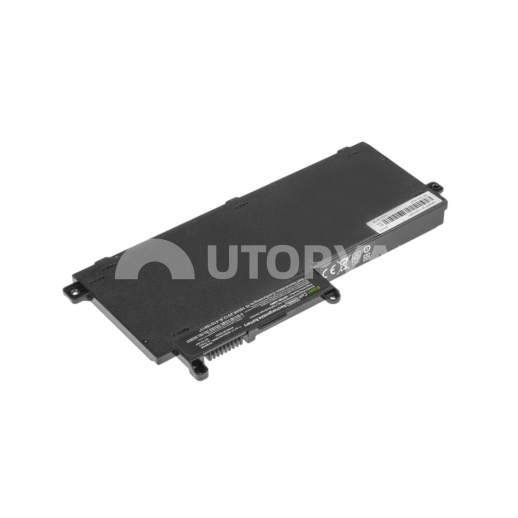

HP ProBook Green Cell Battery 3400mAh (Li-Po 11.4V) - Ref. CI03XL (Refurbished)

Description

The Green Cell internal 3400 mAh replacement battery (reference CI03XL / 801554-001) is a refurbished spare part specially selected for the maintenance, refurbishment, and overhaul of the HP ProBook 640 G2, 640 G3, 645 G2, 650 G2, 650 G3, and 655 G2 professional laptop fleet. Intended for computer repair workshops, corporate IT maintenance services, and B2B resellers specialized in refurbished hardware, this battery is covered by a 3-month warranty, allowing users to restore the nominal battery life of HP mobile workstations at a controlled equipment cost.

Electrochemicaly, this refurbished module uses a 3-cell high-density Lithium-ion Polymer (Li-Po) architecture of the Green Cell brand, delivering a capacity of 3400 mAh at a nominal voltage of 11.4V for an accumulated energy of 48 Wh. This configuration guarantees a perfectly stable electrical supply to the motherboard and supports up to 500 complete charge/discharge cycles. The component incorporates an advanced electronic management board (BMS - Battery Management System) responsible for the continuous control of the charging current. This micro-controller ensures active protection against overvoltages, deep discharges, short circuits, as well as thermal runaway risks.

The rigid external casing is moulded from a high-density, heat-resistant insulating polymer, rigorously adapted to the internal bay of the HP chassis. Installation is carried out under the lower cover of the ProBook and connects directly to the motherboard via a secure flat connector. The location of the screw eyelets faithfully respects the original anchorage points to ensure perfect mechanical rigidity without exerting stress on the internal structure.

Technical Specifications

• Manufacturer Reference: CI03XL / 801554-001 (Green Cell equivalents HP125 / CI03, 801517-851, HSTNN-UB6Q, HSTNN-PB6K)
• Technology / Material: Lithium-ion Polymer (Li-Po) accumulators, rigid insulating polymer casing
• Compatibility: HP ProBook 640 G2, HP ProBook 640 G3, HP ProBook 645 G2, HP ProBook 650 G2, HP ProBook 650 G3, HP ProBook 655 G2
• Dimensions: 195 x 102 x 8 mm
• Weight: 240 g
• Power Supply / Standards: Nominal voltage 11.4V (compatible 11.55V) / Capacity 3400 mAh (48 Wh) / CE, RoHS certifications
• Number of Cells: 3 Li-Po cells
• Condition / Warranty: Refurbished (Refurb) / 3-month B2B warranty
• Integrated Protections: BMS board with anti-overcharge, anti-overheat, short-circuit, and deep-discharge safety

Workshop Advice & Usage

Before replacing this battery, scrupulously check the generation of the client's ProBook: the CI03XL model is exclusively designed for the ProBook 600 G2 and G3 series. It does not fit the first-generation G1 (which uses external removable CA06 type batteries) nor subsequent G4+ generations. For installation, turn off the computer, disconnect the mains power supply, and remove the lower cover. Handle the battery ribbon connector with a plastic spatula (spudger) without pulling on the wires. During initial setup in the workshop, perform a complete calibration cycle: charge the refurbished battery to 100% using mains power, then let the device discharge gradually down to about 10-15% before performing an uninterrupted recharge.
