Dell XPS / Inspiron / Vostro Green Cell Battery 5500mAh (Li-Po 7.6V) - Ref. DXGH8 (Refurbished)

Description

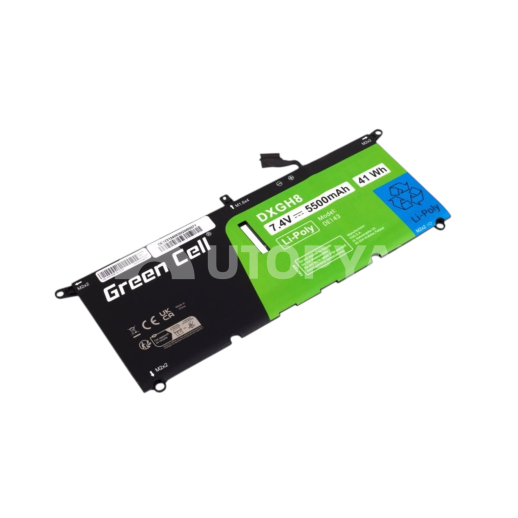

The Green Cell 5500 mAh internal replacement battery (reference DXGH8 / H754V) is a refurbished spare part specially selected for the maintenance, renovation and refurbishment of a wide range of Dell ultrabooks in the XPS 13 (9370, 9380), Inspiron 13 (3301, 5390, 5391, 7390, 7391) and Vostro 13 (5390, 5391) series. Intended for computer repair workshops, IT park management services and B2B resellers specializing in refurbished equipment, this battery covered by a 3-month warranty restores the nominal battery life of Dell ultra-compact laptops at a controlled equipment cost.

Electrochemicaly, this refurbished module incorporates an assembly of 4 high-density Lithium-ion Polymer (Li-Po) cells of the Green Cell brand, delivering a capacity of 5500 mAh at a nominal voltage of 7.6V for an accumulated energy of 52 Wh. This configuration provides perfectly regulated power to the motherboard and supports up to 500 complete charge and discharge cycles. The whole unit is managed by an intelligent electronic management circuit (BMS - Battery Management System) which controls the continuous regulation of the charging current. This controller protects the component and the computer against overvoltage, deep discharge, short circuits as well as the risks of thermal runaway during intensive use.

The ultra-flat external casing is structured in a heat-resistant insulating polymer, rigorously adapted to the internal footprint of Dell ultra-slim chassis. Integration is carried out directly under the bottom cover of the ultrabook and interfaces with the motherboard via a secure flat ribbon connector. The location of the metal mounting eyelets faithfully respects the original assembly points to guarantee rigid attachment, avoiding any mechanical play or deformation under the palmrest and the trackpad.

Technical specifications

• Manufacturer reference: DXGH8 / H754V (Green Cell equivalents DE118 / 0H754V, V48RM, 0V48RM, HK6N5, P82G)
• Technology / Material: Lithium-ion Polymer (Li-Po) accumulators, rigid insulating polymer casing
• Compatibility: Dell XPS 13 (9370, 9380), Dell Inspiron 13 (3301, 5390, 5391, 7390, 7391), Dell Vostro 13 (5390, 5391)
• Dimensions: 257 x 99 x 5 mm
• Weight: 220 g
• Power supply / Standards: Nominal voltage 7.6V (7.4V compatible) / Capacity 5500 mAh (52 Wh) / CE, RoHS certifications
• Number of cells: 4 Li-Po cells
• Condition / Warranty: Refurbished (Refurb) / 3-month B2B warranty
• Integrated protections: BMS board with overcharge, overheat, short-circuit and deep discharge safety

Workshop Tip & Usage

Before replacing this battery, scrupulously check the exact model of the customer Dell XPS or Inspiron: the DXGH8 model is exclusively intended for XPS 13 9370 and 9380 chassis. It is incompatible with older XPS 13 generations (9350 / 9360 using the JHXFO battery) or newer ones (9300 / 9310). For dismantling the lower aluminum shell, use a Torx T5 screwdriver for the peripheral screws and be sure to gently lift the cover without forcing. Disconnect the connection ribbon of the old battery using a plastic spudger while paying attention to the connector on the motherboard. During initial workshop commissioning, perform a full calibration cycle: charge the refurbished battery to 100% under mains power, then let the device discharge gradually down to about 10-15% before performing an uninterrupted recharge.
