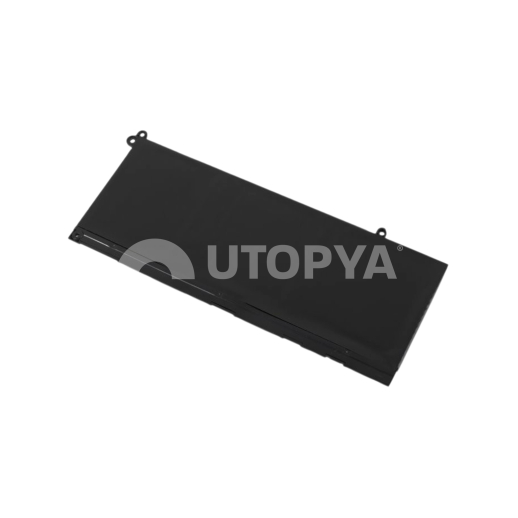

Dell Latitude / Inspiron Green Cell Battery 3300mAh (Li-Po 11.25V) - Ref. G91J0 (Refurbished)

Description

The Green Cell 3300 mAh internal replacement battery (reference G91J0 / 0G91J0 / VVR63) is a refurbished spare part specially selected for the maintenance, renovation and refurbishment of a wide range of Dell laptops in the Latitude (3320, 3330, 3420, 3520), Inspiron 15 (3511, 3515, 3520, 3525, 5510, 5515) and Vostro 15 series. Intended for computer repair workshops, B2B IT fleet management services and resellers specializing in refurbished equipment, this battery covered by a 3-month warranty restores the original battery life of Dell laptops while keeping workshop equipment costs under control.

Electrochemicaly, this refurbished module incorporates an assembly of 3 high-density Lithium-ion Polymer (Li-Po) cells of the Green Cell brand, delivering a capacity of 3300 mAh at a nominal voltage of 11.25V for an accumulated energy of 41 Wh. This configuration provides a perfectly regulated electrical power supply to the motherboard and supports up to 500 complete charge and discharge cycles. The whole unit is managed by an intelligent electronic management circuit (BMS - Battery Management System) responsible for the continuous control of the charging current. This controller protects the component and the computer against overvoltage, deep discharge, short circuits as well as thermal runaway risks.

The ultra-flat external casing is moulded in a heat-resistant high-density insulating polymer, rigorously adapted to the internal footprint of Dell chassis. Integration is carried out under the bottom cover of the computer and interfaces with the motherboard by means of a secure flat ribbon connector. The location of the metal fixing tabs faithfully respects the original assembly points to guarantee a rigid fixing without exerting mechanical stresses on the palmrest or the motherboard.

Technical specifications

• Manufacturer reference: G91J0 / 0G91J0 (Green Cell equivalents DE145 / VVR63, 0VVR63, 0GK5KY)
• Technology / Material: Lithium-ion Polymer (Li-Po) accumulators, rigid insulating polymer casing
• Compatibility: Dell Latitude (3320, 3330, 3420, 3520), Dell Inspiron 15 (3511, 3515, 3520, 3525, 5510, 5515), Dell Vostro 15 (3510, 3515, 3520, 5510)
• Dimensions: 263 x 80 x 5 mm
• Weight: 190 g
• Power supply / Standards: Nominal voltage 11.25V (11.4V compatible) / Capacity 3300 mAh (41 Wh) / CE, RoHS certifications
• Number of cells: 3 Li-Po cells
• Condition / Warranty: Refurbished (Refurb) / 3-month B2B warranty
• Integrated protections: BMS board with overcharge, overheat, short-circuit and deep discharge safety

Workshop Tip & Usage

Before replacing the battery on Inspiron 15 or Latitude 3000 series, turn off the computer and unplug the AC power adapter. Remove the bottom cover screws and gently unclip the shell using a plastic spudger. Before any handling of the used component, imperatively disconnect the battery ribbon connector at the motherboard level. Be careful during reassembly: check that the battery interconnect cable is properly aligned in its guides without pinching under the chassis. During initial workshop commissioning, perform a full calibration cycle: charge the refurbished battery to 100% under mains power, then let the device discharge gradually down to about 10-15% before performing an uninterrupted recharge.
