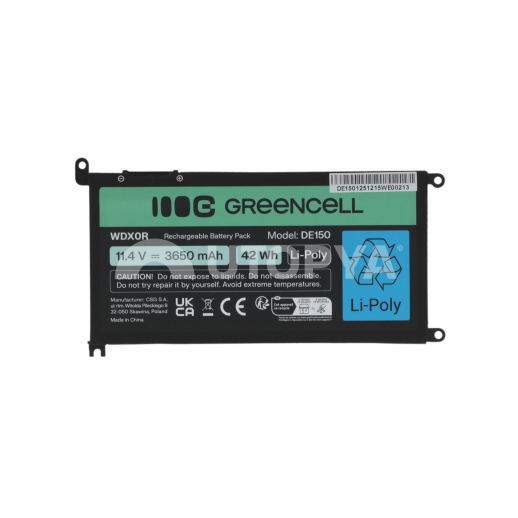

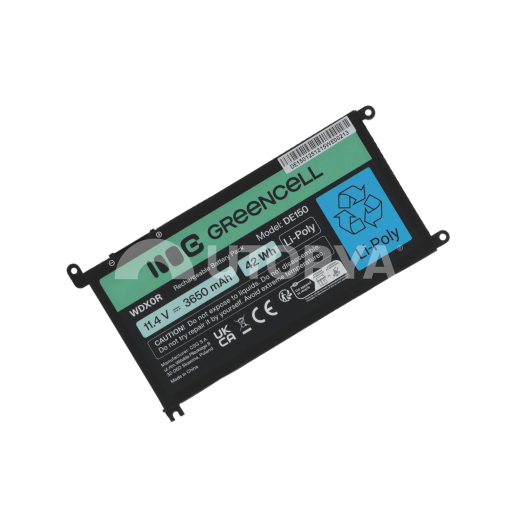

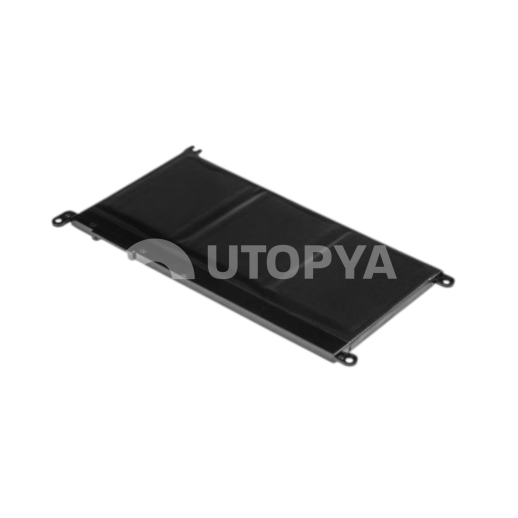

Green Cell WDX0R 11.4V 3650mAh Battery for Dell Inspiron / Latitude / Vostro

Description

The Green Cell WDX0R compatible replacement battery offers a reliable and proven technical solution for the maintenance and repair of Dell laptops. Specially designed to meet the requirements of the Inspiron, Latitude 3000, and Vostro series, this internal battery helps restore the original battery life of an IT fleet while eliminating malfunctions linked to thermal degradation or cell aging (unexpected shutdowns, rapid charge loss, battery not recognized).

Designed by the manufacturer Green Cell, this battery incorporates three high-energy-density Lithium-Ion polymer cells, delivering a nominal voltage of 11.4 Volts for a total capacity of 3650 mAh (approximately 42 Watt-hours). The integrated management electronics (BMS - Battery Management System) ensure perfect communication with the power controller (EC) and the BIOS/UEFI of the Dell motherboard via the SMBus. This guarantees immediate support, without software blocking at startup or power error messages. The unit is secured by hardware protections against overcharging, overheating, overvoltage, and excessive discharging.

Its rigid high-density ABS polymer casing strictly respects the mechanical dimensions and anchor points of the original WDX0R model. Its ultra-compact flat format allows for flush integration within the chassis, avoiding any extra thickness or mechanical stress on the bottom cover or the laptop's trackpad.

Technical specifications

• Manufacturer reference: Compatible with Dell WDX0R / WDXOR / 3CRH3 / T2JX4 / FC92N / 03CRH3 (Manufactured by Green Cell)
• Technology / Material: Lithium-Ion Polymer (3 cells) / Flame-retardant ABS casing
• Compatibility: Dell Inspiron (5368, 5378, 5379, 5468, 5567, 5568, 5570, 7368, 7378, 7560, 7569, 7579, etc.), Dell Latitude (3180, 3189, 3190, 3390, 3480, 3490, 3580, 3590), Dell Vostro (5468, 5471, 5481, 5568)
• Power / Standards: Nominal voltage 11.4V | Capacity 3650mAh (~42Wh)
• Connectivity: Proprietary ribbon cable connector for Dell motherboard

Workshop Advice & Usage

Before performing the replacement on the device, be sure to disconnect the mains charger and discharge static electricity from the circuit board by holding the power button down for 5 seconds. When positioning the battery, carefully align the connection ribbon with the motherboard connector without applying excessive force or twisting the wires to avoid damaging the BMS communication pins. After closing the chassis, perform an initial calibration cycle: charge the battery to 100% without interruption, leave the device plugged in for an additional hour, then use the computer on battery power until the critical threshold of 5-10% before performing a full recharge.
