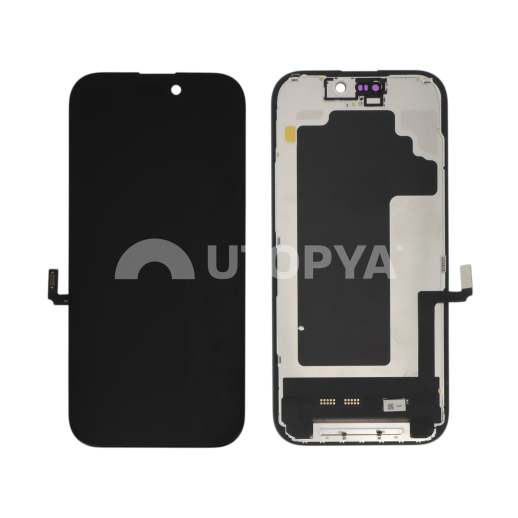

iPhone 17 Full Screen (LTPS) PRIME: Diagnostic-Ready Emulation & High-Density LTPS Panel

Description

The PRIME range LTPS full screen for iPhone 17 represents a major technological innovation intended for repair centres and high-volume technicians. Designed specifically to fit the 6.1-inch iPhone 17 chassis, this component integrates an exclusive electronic architecture known as Diagnostic-Ready. This engineering drastically simplifies the complex maintenance processes imposed by Apple's pairing restrictions, thus offering B2B professionals a fast, reliable, and economically optimised replacement solution for their customers.

The strength of the PRIME range lies in its pre-programmed onboard microcontroller. This management integrated circuit (IC) simulates the security keys of an original component, allowing the screen to be immediately recognised by Apple's native Repair Assistant under iOS 18 and later versions. This Plug & Play process eliminates the need to perform a physical transfer of the original chip (IC Transplant), a level 3 micro-soldering operation that carries high thermal risks for the flex cables. Software integration also allows for the reactivation of True Tone algorithms and the maintenance of Face ID biometric security after system pairing, reducing labour time to about fifteen minutes at the workbench.

In terms of hardware, this screen offers a technological conversion by substituting the original OLED panel with a superior quality LTPS (Low Temperature PolySilicon) LCD matrix. This technology offers pixel density and colour accuracy calibrated to get as close as possible to Retina standards. The panel structure perfectly integrates the geometric cut-outs required for the Dynamic Island, ensuring total ergonomic and visual continuity. The support chassis guarantees a precise mechanical fit within the smartphone's aluminium frame, limiting unnecessary thickness despite the addition of LED backlighting.

Technical Specifications

• Manufacturer reference: iPhone 17 LTPS PRIME Edition
• Technology / Material: LTPS LCD Panel (Low Temperature PolySilicon) with integrated emulation microcontroller
• Compatibility: Apple iPhone 17 only
• Dimensions: Adapted to the original 6.1-inch display format
• Weight: Not specified
• Power / Standards: Low-consumption backlighting compatible with original FPC connector supply voltages
• Refresh rate: 60 Hz native for the touch digitiser and display
• Software integration: Diagnostic-Ready (Compatible with iOS 18+ Repair Assistant)

Workshop Advice & Usage

As an OLED to LTPS LCD conversion, this component presents a major technical constraint that should be pointed out to your customers to avoid after-sales returns: the auto-brightness function is not supported. The structural thickness and the LCD-specific backlight layer mask the underlying ambient light sensor, forcing the end-user to adjust their brightness manually via the iOS Control Centre. During assembly, the transfer of the original flex cable containing the proximity sensor and Face ID modules must be carried out with extreme care. It is imperative to perform a static test (flying test) without removing the protective films to validate the detection of the PRIME chip by the system before applying the peripheral adhesive seal and final chassis closure.
