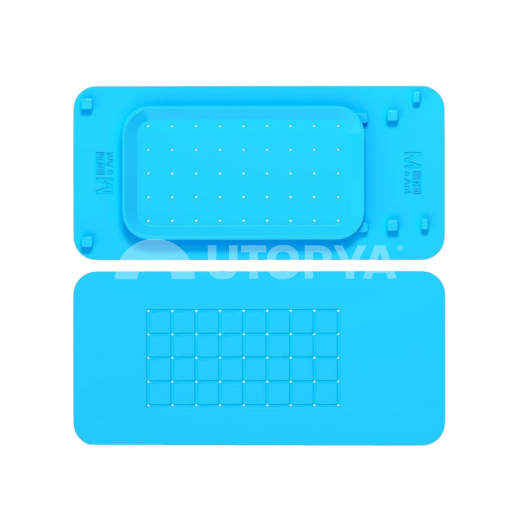

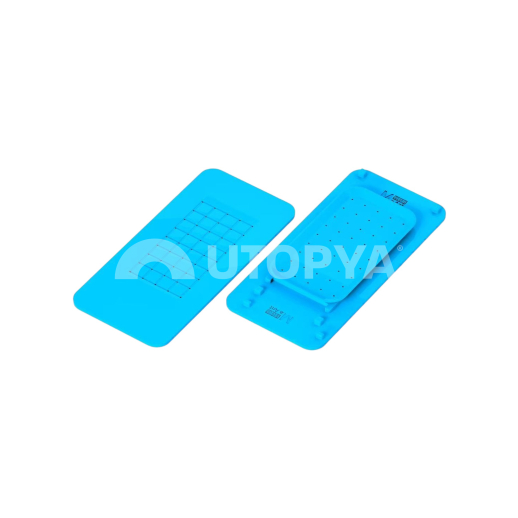

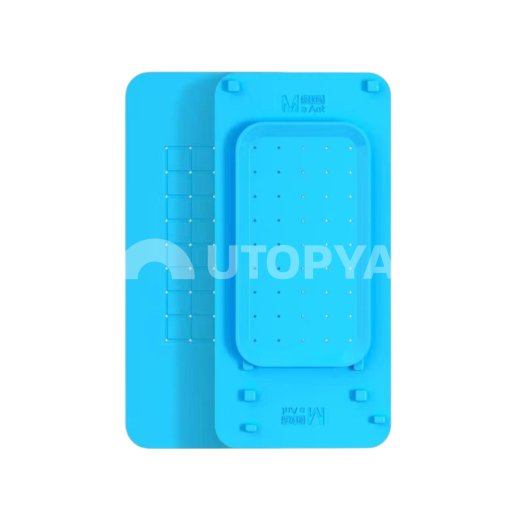

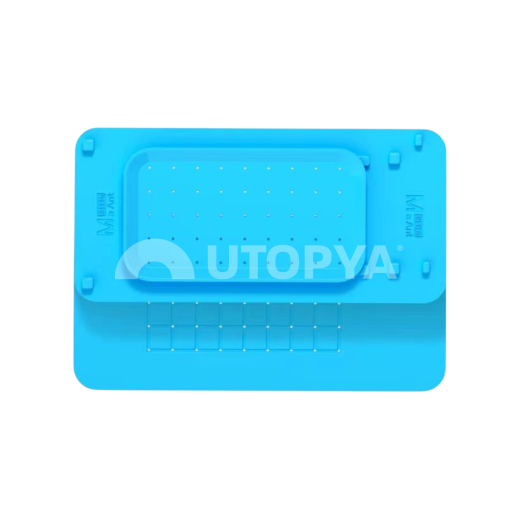

MaAnt ME-02 High Suction Silicone Separation Pad

Description

The MaAnt ME-02 separation pad is an essential high-end workbench consumable to optimize the refurbishment and glass replacement on smartphones and small screens up to 7 inches. Designed to be placed between the aluminium heating plate of your separation machine and the screen to be treated, this technical silicone pad solves the technicians most frequent problem: the loss of vacuum pump pressure when faced with heavily shattered and broken front or rear glass.

Thanks to its optimized vacuum distribution architecture, the ME-02 model creates an industrial-grade seal by conforming to the slightest irregularities and contours of the glass shards. Its cellular structure prevents peripheral air leaks, ensuring that the screen remains perfectly still and firmly pressed against the platen while the technician handles the tungsten or molybdenum wire to cut the OCA glue. Its ultra-pure silicone composition also gives it a natural anti-slip effect that stabilizes frames and prevents accidental slips.

Thermally, the advanced formula of the MaAnt ME-02 silicone offers exceptional thermal tolerance capable of withstanding peak temperatures up to 250 degrees C without suffering discoloration, hardening or structural deformation. It ensures an excellent passive thermal transfer coefficient, allowing the heat emitted by the station to spread completely evenly towards the screen adhesive, which facilitates the softening of structural glues without risking the creation of destructive hot spots for OLED or LCD panels.

Technical specifications

• Manufacturer reference: MaAnt ME-02 (Super Suction Separation Pad)
• Material: High-density technical-grade silicone, antistatic
• Hardware compatibility: Universal for 7-inch screen separation platens and machines
• Thermal resistance: Up to 250 degrees C at peak (Optimized for separation stages at 80 degrees C - 120 degrees C)
• Mechanical properties: Anti-air leak cellular structure, high torsion resilience
• Dimensions: Adapted to standard smartphone refurbishment station formats

Workshop Advice & Usage

To preserve maximum suction power and maximize the lifespan of your MaAnt ME-02 pad, make sure to position the silicone perforations in perfect alignment with the suction holes of your metal grille. During wire cutting phases, microscopic residues of OCA glue or pulverized glass tend to lodge in the cells, which gradually blocks the suction and generates erroneous technical returns. Systematically clean the pad after each refurbishment session using a microfiber cloth dampened with isopropyl alcohol. Never use sharp tools (scalpel, metal spatula) directly on the silicone to remove glue residues, under penalty of permanently perforating the membrane and destroying its sealing properties.
