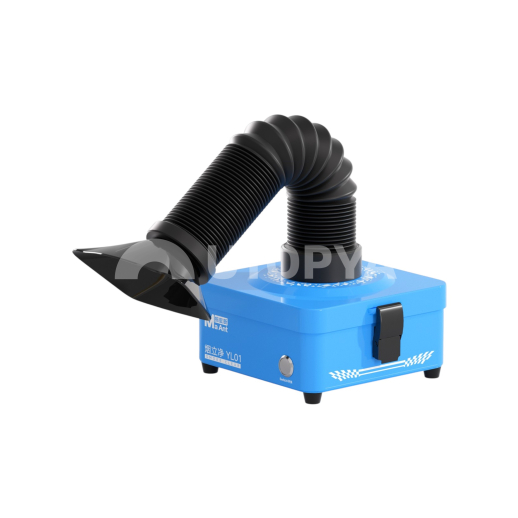

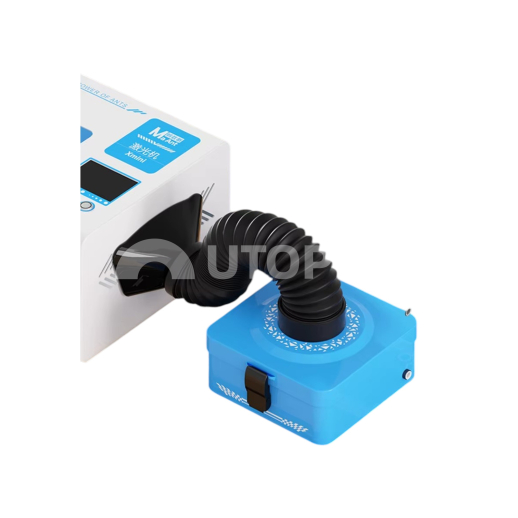

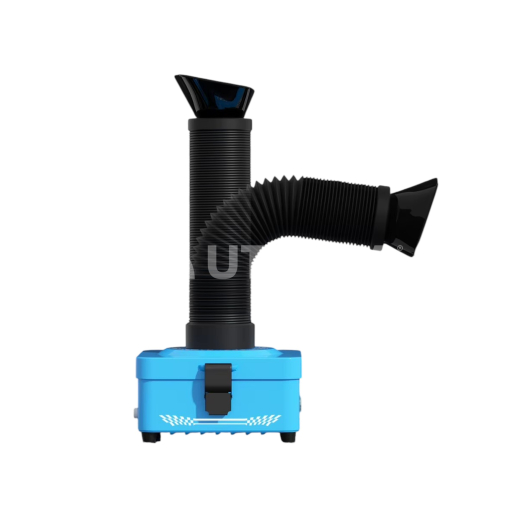

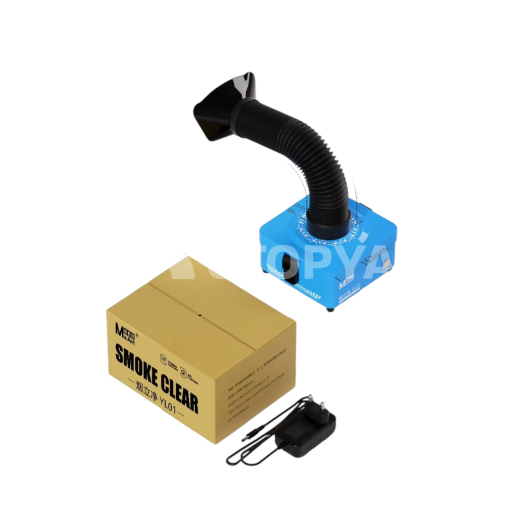

MaAnt YL01 Desktop Solder Fume Absorber & Purifier (ESD Extraction Fan)

Description

The MaAnt YL01 desktop fume absorber is personal protective and air purification equipment specially developed for mobile repair workshops, BGA micro-soldering laboratories, and refurbishing centers. During tinning, underfill resin stripping, or soldering electronic chips with a soldering iron, colophony fluxes release irritating and toxic vapors for the technician. The MaAnt YL01 directly meets occupational health prevention standards by sucking and filtering these volatile emissions directly at the source of combustion.

In terms of engineering, the device integrates a high-performance sealed-bearing axial fan, capable of generating a constant laminar air flow ensuring the immediate capture of the smoke column without disturbing the thermal field of the iron tip or the hot air nozzle. Polluted air is immediately forced through a high-density activated carbon foam filter cartridge. This porous material traps volatile organic compounds (VOCs), micro-dust, and odor molecules by adsorption. The chassis is entirely made of flame-retardant ABS polymer compliant with ESD-Safe standards, preventing the accumulation of electrostatic charges harmful to FPC chips, processors, and integrated circuits (ICs) handled on the workbench.

Its ultra-compact footprint on the workspace and its universal power supply via a USB-C interface allow seamless integration within any modern workstation. The metal protective grille located on the suction face protects the fan blade against direct splashes of tin or micro-scraping tools. The simplicity of its filter holding system allows cartridge replacement in a few seconds, guaranteeing constant suction performance and minimal preventive maintenance for workshop managers.

Technical Specifications

• Manufacturer Reference: MaAnt YL01 Smoke Absorber
• Technology / Material: Mechanical axial extraction & activated carbon filtration / ESD-Safe flame-retardant ABS housing
• Compatibility: Micro-soldering workstations, shelves, and microscope inspection stations
• Dimensions: ~110 mm x 110 mm x 85 mm
• Weight: Not specified
• Power / Standards: USB-C connector (5V) / Compliance with ESD insulation standards
• Filtration: High adsorption capacity activated carbon-impregnated foam cartridge (replaceable)

Workshop Tip & Usage

To maximize toxic flux capture efficiency, position the MaAnt YL01 between 5 cm and a maximum of 15 cm from the impact point of the soldering iron, ideally oriented in the natural direction of smoke movement. Make sure to connect the device to a stabilized USB power source (5V / 1A minimum) to prevent any slowing down of the fan rotation speed. As part of intensive daily use in a repair workshop, it is recommended to replace the activated carbon foam every 3 to 6 weeks (or as soon as the odor retention capacity decreases), as filter saturation gradually reduces the air depression generated by the unit.
