Samsung Galaxy Z Fold8 Ultra 5G Violet 512GB

Description

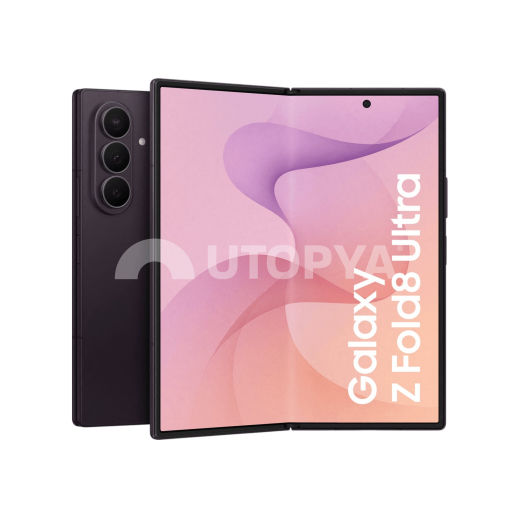

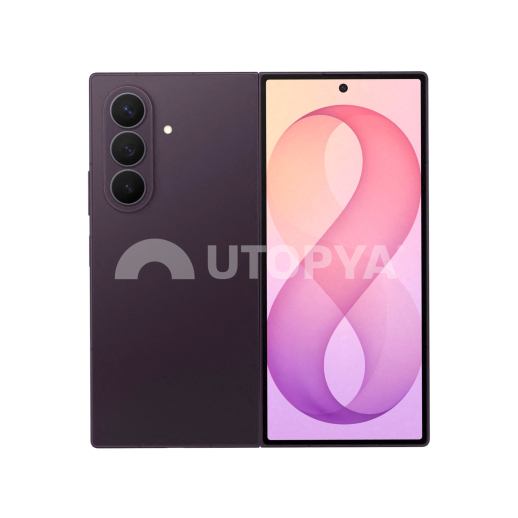

The Samsung Galaxy Z Fold8 Ultra 5G in its 512GB version and Violet (Shadow) finish (reference SM-F976B / SM-F976BZVCEUB) is a hybrid terminal designed to meet the organization and productivity needs of B2B professionals and corporate fleets. Combining a main 8.0-inch Dynamic AMOLED 2X foldable screen and a 6.5-inch cover screen, this model allows you to fully exploit split-screen multitasking and Samsung DeX mode in a slim 4.1 mm thick unfolded structure.

Under the shell, the smartphone relies on the 3 nm octa-core Qualcomm Snapdragon 8 Elite Gen 5 SoC, combined with 12GB of LPDDR5X RAM and high-performance 512GB non-expandable UFS 4.0 flash storage. The main photo unit is articulated around a 200-megapixel optically stabilized (OIS) lens, supplemented by a 50 MP ultra-wide-angle sensor and a 10 MP telephoto lens offering 3x optical zoom. The power architecture incorporates a distributed 5000 mAh dual-cell battery, managed by a circuit compatible with USB Power Delivery 3.0 wired fast charging protocol up to 45 Watts.

The chassis design combines Ultra Thin Glass (UTG) covered with an anti-reflective treatment on the internal folding panels and Corning Gorilla Glass Armor glass on the external facade, all held together by an Armor Aluminum frame. For the repair technician or fleet manager, the internal assembly is modular, facilitating access and targeted replacement of sub-assemblies subject to wear constraints (USB-C charging connector, speakers, side button ribbon cable, camera modules), subject to compliance with the waterproofing protocol.

Technical specifications

• Manufacturer reference: SM-F976BZVCEUB (SM-F976B)
• Technology / Material: Dynamic AMOLED 2X foldable panel (UTG) / Corning Gorilla Glass Armor glass & Armor Aluminum chassis
• Compatibility: 5G / 4G LTE networks (Dual SIM Nano-SIM + eSIM)
• Dimensions: 158.4 x 143.2 x 4.1 mm (unfolded) / 158.4 x 72.8 x 9.9 mm (folded)
• Weight: Not specified
• Power / Standards: 5000 mAh Li-Po battery (dual-cell), 45W USB-PD 3.0 fast charging, 15W Qi wireless charging, IP48 standard
• Display: Internal 8.0" QXGA+ screen (2504 x 2256 px, 120 Hz) / External 6.5" FHD+ screen (2520 x 1080 px, 120 Hz)
• Performance: Qualcomm Snapdragon 8 Elite Gen 5 (3 nm), 12GB LPDDR5X RAM, 512GB UFS 4.0 ROM
• Camera Module: 200 MP main sensor (f/1.7, OIS) + 50 MP Ultra Wide (f/1.9) + 10 MP Telephoto (x3, OIS) / 8K video recording @30fps
• Connectivity: Wi-Fi 7 (802.11be), Bluetooth 6.0, NFC, USB Type-C 3.2 Gen 1

Workshop Advice & Usage

Opening the Violet (Shadow) version of the Samsung Galaxy Z Fold8 Ultra requires detaching the rear facades under regulated heating (80 degrees C maximum) to soften the factory glue without risking damage to the Qi wireless charging pad ribbon cable. When extracting the motherboard or lower daughterboard, disconnect the flexible ribbons crossing the central hinge sub-assembly only using insulated nylon levers to avoid any short-circuit or mechanical damage to the FPC pins. Before the final installation of the rear glass, meticulously clean the gasket seating surfaces with 99% pure isopropanol alcohol and install a new set of thermoformed sealing adhesive kits to re-ensure IP48 protection against dust and fluids.
