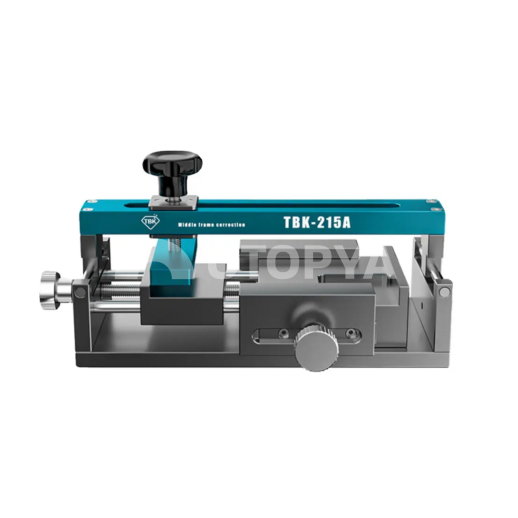

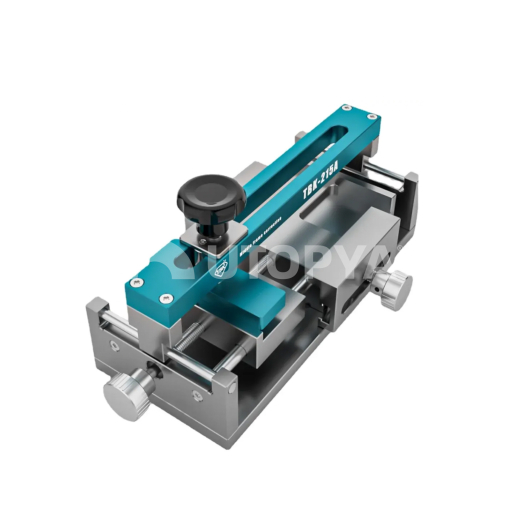

TBK-215A Chassis Straightening and Correction Tool for Smartphones and Tablets

Description

The TBK-215A straightening tool is a precision mechanical device developed for professional repair workshops and refurbishers dealing with deformed, twisted or bent chassis. When a smartphone or tablet suffers an impact or a drop, the deformation of the intermediate aluminium or steel frame prevents the correct fit of the new screen, risking pressure points, premature breakage upon reassembly or a sealing defect. The TBK-215A makes it possible to straighten the original metal structure without having to replace the entire chassis, thus considerably reducing the cost of spare parts.

Built around a heavy 2.4 kg hardened steel structure, this jig guarantees flawless stability under heavy mechanical stress. The system relies on manual rotary adjustment micrometric clamping wheels, offering progressive and millimeter control of the force applied to the deformed area. Adjustable holding supports follow the contours of the device to distribute pressure evenly across the metal profile, avoiding the creation of micro-cracks or unsightly marks on the exterior finish.

Thanks to its modular design and adjustable anchor points, the TBK-215A offers extensive compatibility covering all iPhone series (notably generations 11 to 15 and above), Android smartphones with a metal chassis as well as small-format tablets (such as iPad Mini). Its smooth handling allows for quick familiarization at the intervention desk, transforming a delicate straightening operation into a standardised and secure workshop procedure.

Technical specifications

• Manufacturer reference: TBK-215A
• Technology / Material: High-resistance hardened steel and machined metal alloy
• Compatibility: Universal (Smartphones all brands, Apple iPhone all series, small-format tablets)
• Dimensions: 240 x 170 x 140 mm
• Weight: 2.4 kg (net weight)
• Power supply / Standards: 100% mechanical operation (no electrical power supply required)
• Action mode: Direct mechanical pressure via micrometric screw rotary wheels

Workshop Advice & Usage

Before inserting the chassis into the TBK-215A tool, make sure to imperatively remove the screen, battery, motherboard and sensitive electronic components to avoid any damage related to the twisting of the structure. To prevent scratches on paints or delicate anodizations, apply a strip of silicone protection or kapton tape on the clamping jaws at the contact points. Proceed with straightening very progressively by making quarter turns on the wheel, then release the pressure to check the alignment until you obtain perfect flatness before reassembling the screen assembly.
