UGAIN QG-240 3-in-1 Multifunctional Repair Stand & Screen Separator

Description

The UGAIN QG-240 3-in-1 multifunctional repair stand is an essential tooling equipment for maintenance workshops, micro-soldering technicians, and B2B mobile phone refurbishment centers. Designed to secure the most delicate opening and assembly operations, this universal tool combines the functions of a heat-free screen separator, a housing holding vise, and a high-precision bonding press. Its use helps streamline interventions by avoiding the use of improvised sharp tools likely to damage internal FPC cables or scratch the aluminum and titanium edges.

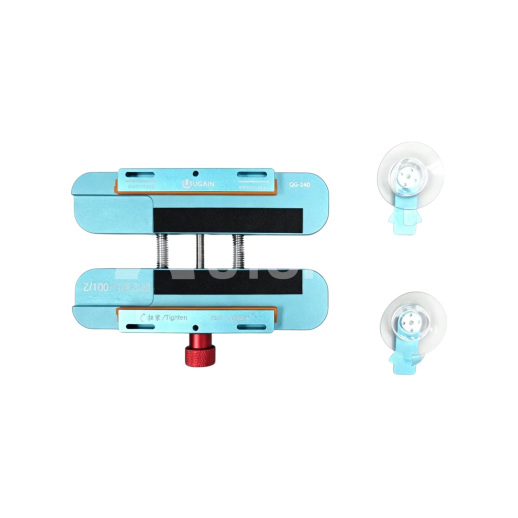

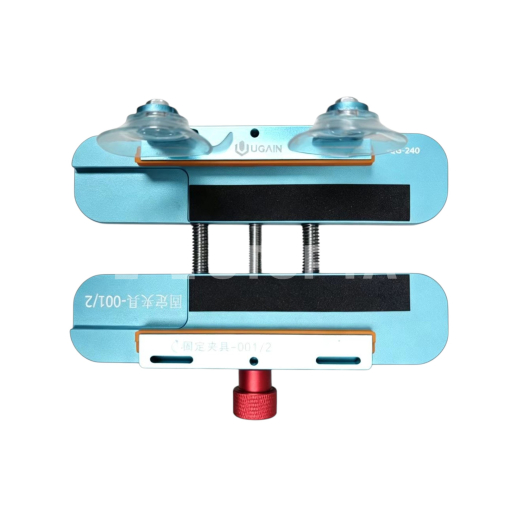

In terms of mechanical design, the UGAIN QG-240 station is entirely computer numerical control (CNC) machined from a high-rigidity anodized aluminum alloy, ensuring perfect flatness and optimal resistance to mechanical deformations. The jaws are spaced out via a triple stainless steel guide rod system, driven by a red anodized knurled wheel with a fine thread pitch for micrometric control of the applied pressure. The contact area receiving the smartphone is lined with non-slip shock-absorbing foams and high-density soft silicone pads to firmly hold the housing without altering the surface treatment of the chassis. The upper section integrates two removable suction cups with high suction power to lift the display panels in a perfectly vertical axis.

Versatile and ergonomic, this universal vise adapts to all generations of smartphones (Apple iPhone, Samsung Galaxy, Xiaomi, Google Pixel) up to a 7-inch screen diagonal. Its open architecture offers direct access to the edges of the device to facilitate the insertion of opening picks, the application of isopropanol solvent, or the cleaning of perimeter glue residues. The stability of its weighted base ensures a perfect hold on the work mat during back glass removal or sub-assembly dismantling operations.

Technical specifications

• Manufacturer part number: UGAIN QG-240 (QG-240 / 固定夹具-001/2)
• Technology / Material: CNC machined anodized aluminum alloy, stainless steel, silicone, EVA foam
• Compatibility: Universal (iOS and Android smartphones all diagonals up to 7")
• Power supply / Standards: Manual mechanical tools (no electrical power supply), ESD Safe
• Included accessories: 2 removable suction cups with mechanical locking

Workshop Tip & Usage

To remove a screen without risking tearing the FPC cable connecting the panel to the motherboard, position the smartphone in the center of the lower jaw and slightly lock the side vise using the red wheel. Then attach the two suction cups to the upper part of the glass after degreasing the surface with isopropanol alcohol. Slowly rotate the upper screw: the vertical traction exerted by the suction cups creates a progressive and controlled opening at the adhesive seal. For reassembly and back glass bonding operations (type B-7000 / E-8000), remove the suction cups and use the tool as a uniform holding press while leaving the chassis clamped during the recommended curing time of 20 to 30 minutes.
