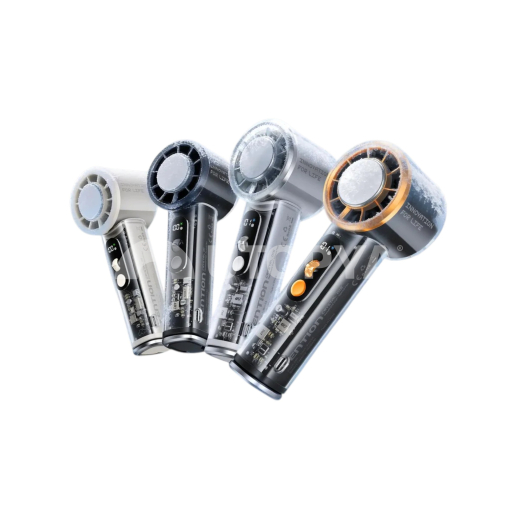

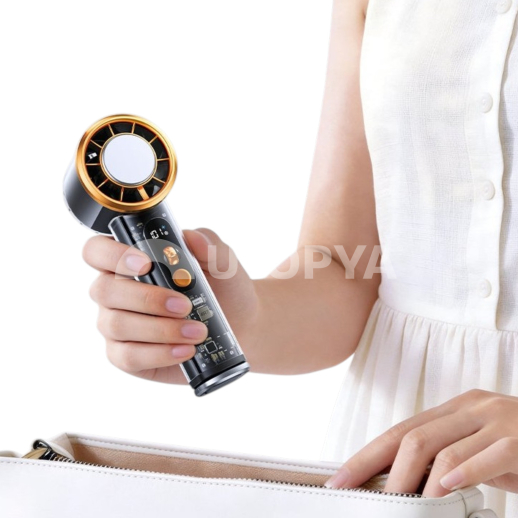

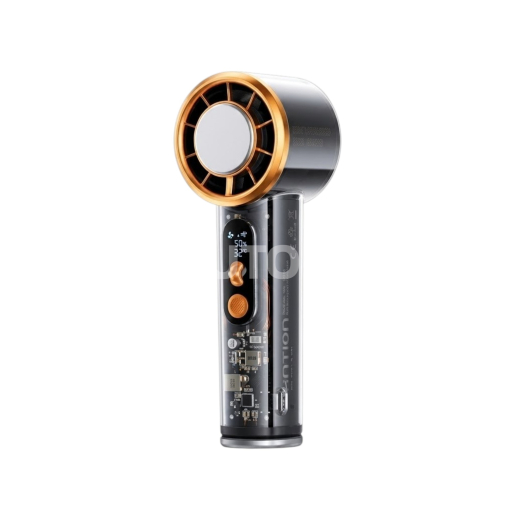

VENTION Crystal 01S Icy Turbo 4500mAh High-Speed Portable Fan - Grey (PBFH0-Pro)

Description

The VENTION Crystal 01S Icy Turbo portable fan (part number PBFH0-Pro) is a high-end individual portable cooling solution, designed to meet the requirements of professionals on the move, workshop technicians, or retailers specialising in mobile phone shops. Featuring a sober and elegant Space Grey finish, this 'Pro' model distinguishes itself from conventional axial fans by combining a high-pressure turbine motor with an active thermoelectric physical cooling system.

Electromechanically, the device relies on a brushless DC motor capable of spinning up to 11,000 RPM. It is coupled with a Peltier effect module leading to a central aluminium alloy plate, allowing for an almost instantaneous drop in temperature upon skin contact. The unit is powered by a high-density 4500 mAh (16.65 Wh) Lithium-ion battery, controlled by a BMS electronic management board ensuring protection against overvoltage and overheating. The user interface includes an LED digital screen displaying the remaining battery life as a percentage, the selected ventilation level, and the cold mode activation indicator. The airflow speed is finely adjustable from 1 to 100% via a continuous dimmer.

The 250-gram ergonomic structure combines high-density ABS and Polycarbonate (PC) polymers with a heat-resistant ventilation grille, ensuring optimal protection against light drops and twisting. The compact dimensions of 59.5 × 60 × 168 mm allow for easy handling or secure storage in a tool bag. The battery is recharged via a standard USB-C port operating at a voltage of 5V with a recommended current of 2A.

Technical Specifications

• Technology / Material: Brushless DC motor, aluminium thermoelectric module, rigid ABS & PC shell
• Compatibility: Universal (Recharge via USB-C port)
• Battery: Built-in 4500 mAh (16.65 Wh) Lithium-ion
• Power Supply / Standards: USB-C input 5V / 2A | CE / RoHS certifications
• Rotation Speed: Up to 11,000 RPM
• Display: LED digital screen (Battery percentage, speed level 1-100%, active cold icon)
• Special Function: Physical contact cooling via thermoelectric plate

Workshop Advice & Usage

Inform your professional customers that simultaneous use of the thermoelectric cooling module and 100% airflow places intensive demand on the 4500 mAh battery (average battery life of approximately 2 to 3 hours in continuous max cold mode, compared to over 10 hours in low-power ventilation only). To avoid any risk of charging interruption or abnormal heating of the BMS circuit during recharging, recommend the use of a universal mains block that strictly delivers 5V / 2A (10W). Regularly dust the rear suction nozzle with neutral dry air to prevent clogging of the internal heat sinks.
