VENTION Crystal 01S Icy Turbo 4500mAh High-Speed Portable Fan - Silver

Description

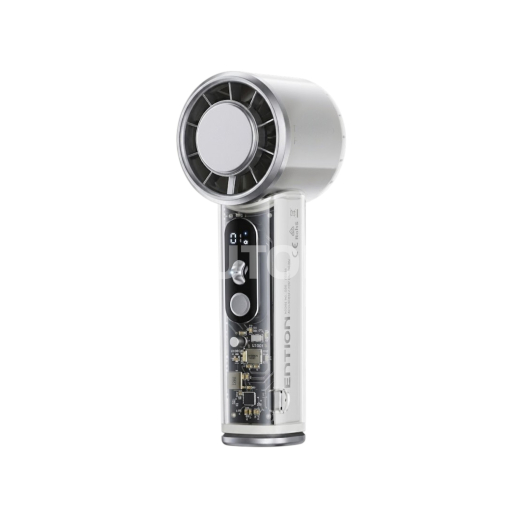

The VENTION Crystal 01S Icy Turbo portable fan (reference PBFI0-Pro) is a high-end nomadic personal cooling device, specifically designed for professionals on the move, field technicians, as well as for resale in mobile phone and accessory shops. Featuring a modern and sleek White finish, this "Pro" model distinguishes itself from conventional axial equipment by combining a high-pressure micro-turbine with an active thermoelectric physical cooling system.

Electromechanically, the device incorporates a DC Brushless motor capable of delivering a rotation speed reaching 11,000 RPM. It is coupled with a Peltier effect module connected to a central aluminium alloy plate, allowing for an almost immediate temperature drop upon skin contact. The unit is powered by a high-capacity 4500 mAh (16.65 Wh) Lithium-ion battery, managed by an electronic protection circuit (BMS) against overvoltage, overheating, and deep discharge. The user interface includes a digital LED screen displaying the remaining battery life as a percentage, the selected speed, and the cold mode activation indicator. The airflow can be adjusted with great precision from 1 to 100% via a continuous dimmer.

The 250-gram ergonomic chassis combines high-density ABS and Polycarbonate (PC) polymers with a heat-resistant air grille, ensuring optimal protection against twisting and workshop micro-shocks. Its compact dimensions of 59.5 × 60 × 168 mm facilitate a comfortable grip or secure storage in a tool bag. Recharging is performed via a standard USB-C connector operating at a nominal voltage of 5V with a recommended current of 2A.

Technical Specifications

• Technology / Material: DC Brushless motor, aluminium thermoelectric module, rigid ABS & PC shell
• Compatibility: Universal (Recharge via USB-C port)
• Battery: Integrated 4500 mAh (16.65 Wh) Lithium-ion
• Power / Standards: USB-C 5V / 2A input | CE / RoHS certifications
• Rotation Speed: Up to 11,000 RPM
• Display: Digital LED screen (Battery percentage, speed level 1-100%, active cold icon)
• Special Function: Physical contact cooling via thermoelectric plate

Workshop Advice & Usage

Advise your professional clients that the simultaneous use of the cooling plate and the turbine at 100% places a sustained load on the 4500 mAh battery (average battery life of 2 to 3 hours in max continuous cold mode, compared to over 10 hours in low-power ventilation only). To avoid any risk of charging interruption or abnormal heating of the BMS circuit during recharging, recommend the use of a universal mains adapter that strictly delivers 5V / 2A (10W). Regular dusting of the rear intake grille with neutral dry air is recommended to preserve the internal heat dissipation system.
