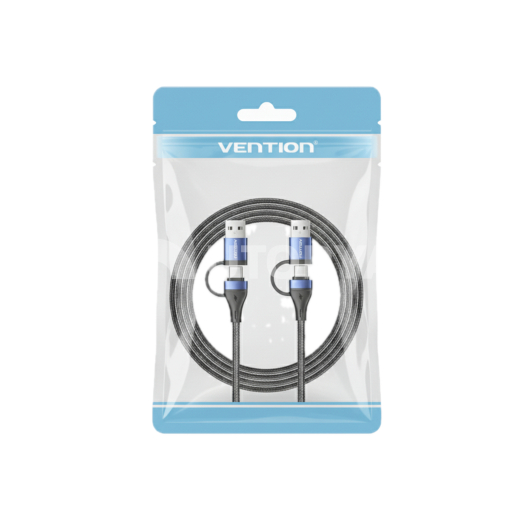

4-in-1 Multi-Connector Cable USB-A / USB-C to USB-C / Micro-USB VENTION 5A

Description

The versatile 4-in-1 VENTION cable is a universal charging and data synchronisation solution, specially developed for mobile technicians, charging stations in repair workshops, and B2B resale in mobile accessory shops. Thanks to its clever system of captive tilting tips, this single cable replaces four separate cables, allowing any power source (USB-A or USB-C) to be connected to the majority of terminals on the market equipped with a USB-C or Micro-USB port.

Electromechanically, the cable incorporates internal tinned copper conductors with a large cross-section, protected by multi-layer shielding in aluminium foil and metallic braiding to eliminate electromagnetic interference (EMI). This high-conductivity design allows it to handle a maximum intensity of 5A to ensure compatibility with fast charging technologies (Power Delivery, Quick Charge, Huawei FCP/SCP). Data transfer is carried out under the USB 2.0 standard with a maximum theoretical speed of 480 Mbps, ensuring smooth synchronisation of user data during backup, flashing, or phone diagnostic operations.

The durability of the assembly is reinforced by an outer braiding in high-density cotton fibre, offering superior resistance to friction, pinching, and knots. The connector shells are shaped in blue anodised aluminium alloy, resistant to corrosion and workshop shocks. Each junction between the plug and the cable benefits from a strain relief sleeve in flexible TPE elastomer, tested to withstand more than 10,000 bending cycles without breaking the internal connections.

Technical specifications

• Manufacturer reference: VENTION 4-in-1 Cotton Braided USB Cable Series
• Technology / Material: Tinned copper conductors, braided cotton sheath, aluminium alloy shells
• Compatibility: Universal (USB-A, USB-C, and Micro-USB equipment)
• Dimensions: Length 1 metre
• Power / Standards: Max current 5A / USB 2.0 standard (Transfer up to 480 Mbps) / CE, RoHS certifications
• Possible configurations: USB-A to USB-C, USB-A to Micro-USB, USB-C to USB-C, USB-C to Micro-USB

Workshop Advice & Usage

Inform your professional customers and technicians that this cable is optimised for high-intensity charging (up to 5A) and USB 2.0 data transfer. It is not designed to carry a high-definition video signal (DisplayPort Alt Mode/HDMI) between a computer and an external monitor. In the workshop, this cable is the ideal companion to pair with a multi-port charging station to quickly test any type of incoming smartphone or tablet for repair, without cluttering the workbench with multiple tangled cables.
